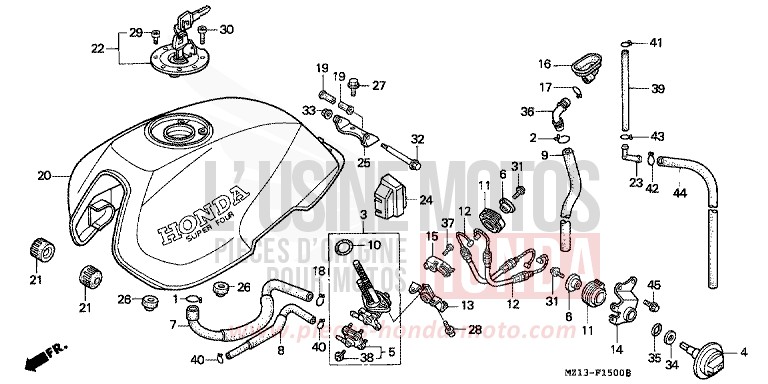

FUEL TANK for CB1000F "Big One" PEARL FADELESS WHITE (NH341K) from 1993

FUEL TANK for CB1000F "Big One" PEARL FADELESS WHITE (NH341K) from 1993
Reference
Product name
#1 15707-634-000

ATTACHE OF TUBE OF DRAIN D'OIL

Contact us
#2 15771-KV6-000

CLIP OF TUBE OF DRAIN OIL

Price €7.08
#3 16950-MZ1-000 i

COCK ASSY, FUEL

Price €355.36
Contact us
#4 16952-MZ1-000

LEVER, FUEL COCK

Contact us
#5 16953-MV9-000 i

COVER SET, COCK

Price €105.90
#6 16953-MZ1-000

COLLAR, FUEL COCK

Price €5.46
Contact us
#7 16955-MZ1-000

TUBE, FUEL

Price €30.20
Contact us
#8 16956-MZ1-000

TUBE, VACUUM

Price €12.36
Contact us
#9 16957-MZ1-000

TUBE, FUEL TANK DRAIN

Contact us
#10 16958-KY6-003

O-RING

Price €9.13
#11 16964-MZ1-000

DRUM, REMOTE FUEL COCK

Price €15.66
Contact us
#12 16970-MZ1-000 i

CABLE COMP A, FUEL COCK

Price €19.69
Contact us
#13 16971-MZ1-000

BRACKET, FUEL COCK

Contact us
#14 16974-MZ1-000

STAY, FUEL COCK LEVER

Contact us
#15 16975-MT4-000

PLATE, FUEL COCK LEVER CLICK

Contact us
#16 17223-MN8-700

TRAY, FUEL TANK DRAIN

Price €23.47
Contact us
#17 17316-MN1-670

CIRCLIP A OF TUBE OF RENIFLARD

Price €6.94
#18 17371-174-670

PIPE CLIP OF RESPIRATION

Price €7.36
#19 17506-MB1-000

CUSHION, FUEL TANK PIVOT

Price €15.60
#20 17520-MZ1-610ZB

TANK SET, FUEL (WL) TYPE2 (TYPE2 )

Price €1,104.94
Contact us
#21 17611-425-000

TAMPON OF TANK FUEL FRONT

Price €11.99
#22 17620-MT4-010 i

CAP COMP, FUEL TANK

Price €417.61
#23 19103-ML7-000 i

RACCORD OF TUBE

Price €10.94
#24 37891-MZ1-000

COVER, THROTTLE SENSOR

Price €48.97
Contact us
#25 50197-MZ1-000

STAY, FUEL TANK PIVOT

Contact us
#26 77206-GF0-000

RUBBER, SEATPOLSTER

Price €9.20
#27 90001-GHB-630 i

BOLT, FLANGE, 6X16

Price €5.21
#28 90002-KN8-730

BOLT, SOCKET, 6X18

Price €2.86
Contact us
#29 90073-MT4-000

BOLT SOCKET 4X6

Price €6.20
#30 90074-MT4-000 i

BOLT OF SOCKET, 4X21

Price €5.59
#31 90103-GB6-930

SCREW, COVER OF FIXING OF HANDLEBAR

Price €9.65
#32 90135-MS2-000

BOLT, CHARNIERE OF TANK

Price €9.55
#33 90301-473-003 i

NUT U, 6MM (FUSE RASHI)

Price €11.29
#34 90403-KV3-830

WASHER, THRUST, 172MM

Price €6.54
Contact us
#35 90505-MR7-000

WASHER 17.5

Price €8.52
#36 91463-MC4-000

JOINT, TUBE

Price €10.14
#37 93500-040080H

SCREW, PAN, 4X8

Price €0.78
#38 93892-0401618 i

SCREW A HEAD A WASHER, 4X16

Price €0.85
#39 95001-4528040

TUBE, FUEL, 45X280 (95001-45001-60M)

Price €5.98
#40 95002-02070 i

CLAMP, TUBE (B7)

Price €0.88
#41 95002-02080 i

CLAMP, TUBE (B8)

Price €0.79
#42 95002-02130

PIPE CLIP (B12.5)

Price €1.08
#43 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#44 95005-8056020

PIPE

Contact us
#45 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
