HEADLIGHT (CB750F2) 🏍️ CB Seven Fifty
SWITCH/CABLE (CB750F2) 🏍️ CB Seven Fifty

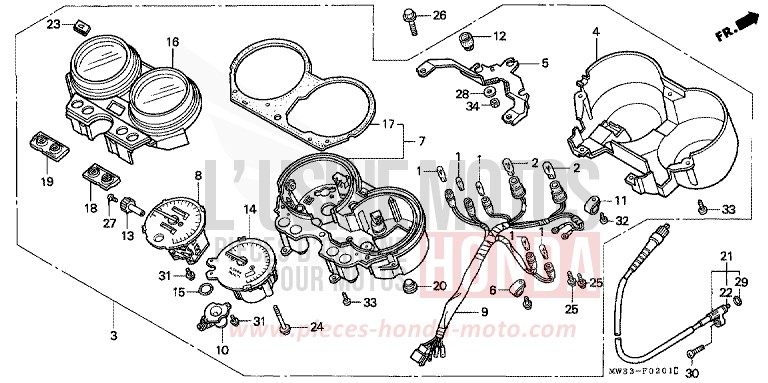

METER (CB750F2) for CB Seven Fifty BLACK (NH1) from 1992

METER (CB750F2) for CB Seven Fifty BLACK (NH1) from 1992
Reference
Product name
#1 34907-KW3-003 i

BULB, KEILBASIS (12V 17W) (STANLEY)

Price €5.22
#2 34908-KW3-003 i

BULB, WEDGE BASE (12V 34W) (STANLEY)

Price €5.22
#3 37100-MW3-611

METER ASSY, COMBINATION (KPH)

Contact us
#4 37110-MW3-610 i

COVER

Price €128.71
#5 37120-KAF-008 i

BRACKET ASSY

Price €65.52
#6 37121-ML7-671

FLANGE

Price €7.36
#7 37130-MW3-611

CASE ASSY, INNER

Price €170.92
Contact us
#8 37200-MW3-611

SPEEDOMETER ASSY (NS) (KPH)

Contact us
#9 37205-MW3-611

SOCKET COMP (NS)

Price €175.58
Contact us
#10 37211-MR7-008

BOSSE OF COUDE

Price €98.83
Contact us
#11 37215-KAF-008

CLIP

Price €4.92
#12 37215-ML0-008

RUBBER, METER SETTING

Price €8.24
#13 37220-445-008

BOUTON OF METER JOURNALIER

Price €17.44
#14 37250-MW3-611

TACHOMETER ASSY (NS)

Price €576.92
Contact us
#15 37264-MR7-008

GASKET

Price €2.27
Contact us
#16 37610-MW3-611

CASE ASSY, UPPER

Contact us
#17 37613-KAF-008

PACKING

Price €31.13
Contact us
#18 37616-KAF-671

LENS ASSY, R SMOKE

Price €15.86
Contact us
#19 37617-MW3-611

LENS ASSY, L SMOKE

Price €20.89
Contact us
#20 37618-MB2-008

CAP, SPEED ALARM CORD

Price €6.52
#21 44830-MM4-000 i

CABLE COMP, SPEEDOMETER

Price €58.86
Contact us
#22 44831-MM5-000 i

CABLE, INNER

Price €18.88
#23 86150-MR8-300

EMBLEM, WING MARK

Price €25.76
#24 90032-ML7-671 i

SELF-TAPPING SCREW, 4X36

Contact us
#25 90108-GN2-008

SCREW A HEAD A WASHER, 3X10

Price €6.52
#26 90154-ML0-000

BOLT, FLANGE, 6X12

Price €5.08
#27 90158-KM7-911 i

CYLINDRICAL HEAD SCREW, 2X6

Price €6.08
#28 90525-030-000 i

WASHER B OF FIXING SUPPORT OF HANDLEBAR

Price €6.80
#29 91301-027-000

O-RING, 6.8X1.9

Price €5.58
#30 93700-050200G i

SCREW A HEAD OVALE, 5X20

Price €0.78
#31 93893-0401010 i

SCREW-WASHER, 4X10

Price €1.00
#32 93913-24220

SELF-TAPPING SCREW, 4X12

Price €0.78
#33 93913-24480

SELF-TAPPING SCREW, 4X16 (PO)

Price €0.64
#34 94001-060000S i

NUT HEX., 6MM

Price €1.19
