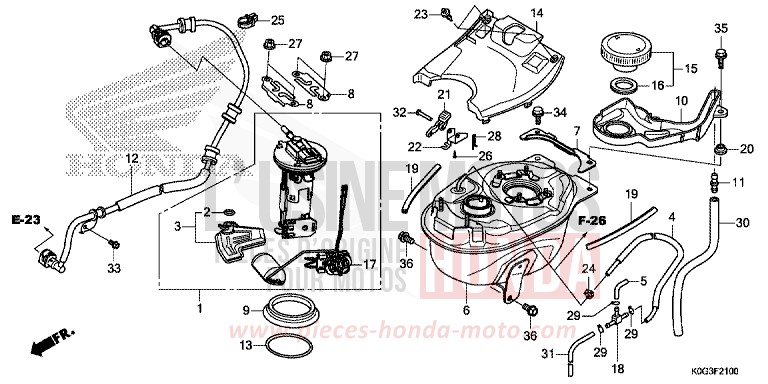

FUEL TANK/FUEL PUMP for C125A PEARL NILTAVA BLUE (PB415) from 2019

FUEL TANK/FUEL PUMP for C125A PEARL NILTAVA BLUE (PB415) from 2019
Reference
Product name
#1 16700-K0G-901

PUMP ASSY, FUEL

Price €384.60
#2 16706-K81-N01 i

O-RING (P7)

Price €3.46
#2 16706-KVB-S51 i

O-RING (P7)

Price €3.46
#3 16707-KZV-T01

FILTER SET

Price €23.24
#4 17411-K0G-900

TUBE, CHARGE

Price €17.84
#5 17413-K0G-920

TUBE, AIR

Price €6.66
#6 17510-K0G-900

TANK COMP, FUEL

Price €361.26
#7 17511-K0G-900

PATCH, FUEL TANK

Price €17.59
#8 17517-GGL-J00

BRACKET, FUELPUMPE

Price €5.21
#9 17518-GHB-601

SEAL, DUST (OHTUKA POLY-TECH)

Price €12.46
#10 17525-K0G-900

TRAY, FUEL

Price €16.98
#11 17525-KBN-900

CONNECTION, BENZINSCHLAUCH

Price €12.01
#12 17570-K0G-901

HOSE COMP, FUEL FEED

Price €44.86
#13 17572-GHB-601

O-RING, PUMP A FUEL (ARAI)

Price €20.76
#14 17575-K0G-900

COVER, FUEL TANK

Price €12.76
#15 17620-K01-901 i

CAP COMP, FUEL FILLER

Price €21.55
#15 17620-K01-902 i

CAP COMP, FUEL FILLER

Price €21.55
#16 17632-383-831 i

GASKET OF PLUG OF REMPLISSAGE FUEL

Price €16.22
#16 17632-383-832 i

GASKET OF PLUG OF REMPLISSAGE FUEL

Price €16.22
#17 37800-K0G-901

FUEL UNIT

Price €48.16
#18 38581-K26-B00

JOINT, TUBE (T)

Price €3.36
#19 64415-KPH-900

RUBBER, POSE CAPOT BODY

Price €4.14
#20 81202-K81-N00

COLLAR, LUGGAGE BOX

Price €3.28
#21 83440-K0G-900

LEVER, SIDE COVER

Price €4.48
#22 83450-K0G-900

STAY, SIDE COVER CABLE

Price €10.12
#23 90116-SP0-003

CLIP OF GASKET SEALING OF BUMPER

Price €3.36
#24 90652-KSJ-A21

PIPE CLIP (8.0)

Price €6.23
#25 90682-735-A01

CLIP, WIRE HARNESS

Price €1.36
#26 93903-35210

SELF-TAPPING SCREW, 5X12

Price €0.64
#27 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#28 94251-06000 i

PIN OF BLOCAGE, 6MM

Price €0.88
#29 95002-02080 i

CLAMP, TUBE (B8)

Price €0.79
#30 95003-2705770

TUBE, VINYL, 9X13X570

Price €7.51
#31 95005-4540020 i

TUBE, 45X400 (95005-45001-20M)

Price €9.06
#32 95015-81000 i

PIN A, PILLION STEP

Price €3.00
#33 95701-0601208 i

FLANGE BOLT, 6X12

Price €1.08
#34 95701-0601608 i

FLANGE BOLT, 6X16

Price €1.08
#35 95701-0602008 i

FLANGE BOLT, 6X20

Price €1.15
#36 95701-0801408 i

FLANGE BOLT, 8X14

Price €1.52
