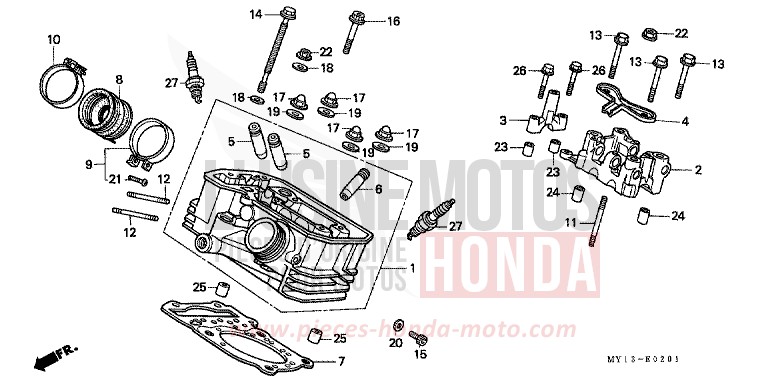

REAR CYLINDER HEAD for Africa Twin 750 SPARKLING RED (R127A) from 1996

REAR CYLINDER HEAD for Africa Twin 750 SPARKLING RED (R127A) from 1996
Reference
Product name
#1 12220-MV1-010

HEAD COMP, RR CYLINDER

Contact us
#2 12223-MV1-000

HOLDER, CAMSHAFT

Price €317.56
#3 12225-MF5-000

HOLDER, SIDE CAMSHAFT

Price €48.83
#4 12226-MF5-000

PLATE, VALVE OIL GUIDE

Price €19.55
#5 12231-MF5-305

GUIDE, IN VALVE (OS)

Price €41.54
#6 12241-MF5-315

GUIDE, EX VALVE (OS)

Price €41.11
#7 12251-MV1-004

GASKET, CYLINDER HEAD

Price €53.02
#8 16211-MY1-000

INSULATOR, CARBURETOR

Price €82.86
#9 16218-MN8-750

BAND A, INSULATOR

Price €16.49
#10 16220-MM4-000

BAND B, INSULATOR

Price €20.52
#11 90013-MF5-000

BOLT, STUD, 8X50

Price €7.01
#12 90015-MN8-000

BOLT, STUD, 8X22

Price €4.19
#13 90066-MC7-000

BOLT, FLANGE, 8X68

Price €8.78
#14 90081-MM9-003

BOLT, CYLINDER, 8X187

Price €11.99
#15 90089-MN8-000

BOLT, SOCKET, 5X8

Price €6.76
Contact us
#16 90004-GHB-770

BOLT, FLANGE,

Price €7.16
#17 90204-634-000

NUT, FLANGE, 10MM

Price €6.38
#18 90401-MR1-000

WASHER, 8MM

Price €3.12
#19 90410-HC4-000

WASHER, 10MM

Price €4.80
#20 90452-323-000

WASHER, SEALING, 5MM

Price €2.42
#21 93500-050250G

SCREW, PAN, 5X25

Price €0.84
#22 94050-08080

NUT, FLANGE, 8MM

Price €1.48
#23 94301-08140

DOWEL PIN, 8X14

Price €2.02
#24 94301-10160

DOWEL PIN, 10X16

Price €2.33
#25 94301-14200

DOWEL PIN, 14X20

Price €2.04
#26 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#27 98069-57916

PLUG, SPARK (DPR7EA-9) (NGK)

Price €6.41
#27 98069-57926

PLUG, SPARK (X22EPR-U9)

Price €6.41
#27 98069-58916

PLUG, SPARK (DPR8EA-9) (NGK)

Price €6.41
#27 98069-58926

PLUG, SPARK (X24EPR-U9) (DENSO)

Price €6.41
#27 98069-59916

PLUG, SPARK (DPR9EA-9) (NGK)

Price €6.41
#27 98069-59926

PLUG, SPARK (X27EPR-U9) (DENSO)

Price €6.41
