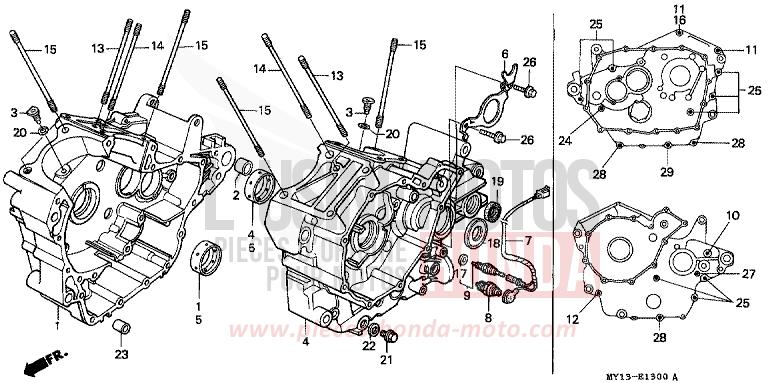

CRANKCASE for Africa Twin 750 SHASTA WHITE (NH138H) from 1993

CRANKCASE for Africa Twin 750 SHASTA WHITE (NH138H) from 1993
Reference
Product name
#1 11100-MV1-000

CASE ENGINE COMP. R.

Contact us
#2 11105-MM9-000

BAND, 23X20

Price €12.19
#3 11146-MN8-000

JET D'OIL

Price €35.98
Contact us
#5 13325-ME9-305

BEARING A (BLUE)

Contact us
#5 13326-ME9-305

BEARING B (BLACK)

Price €62.48
Contact us
#5 13327-ME9-305

BEARING C (BROWN)

Price €49.49
Contact us
#6 23531-MV1-000

PLATE OF FIXING OF GASKET D'OIL

Price €14.52
#7 32101-MS8-000

HARNESS AUXILIARY

Contact us
#8 35500-MJ4-024 i

ASSY. SWITCH OF PRESSURE OIL (DENSO)

Price €67.16
#9 35600-MS9-600 i

ASSY. SWITCH NEUTRAL

Price €45.08
#10 90001-MM9-000

BOLT OF SOCKET, 8X125

Contact us
#11 90002-MM9-000

FLANGE BOLT, 8X140

Price €9.90
#12 90008-KE9-000 i

FLANGE BOLT, 8X70

Price €2.00
#13 90011-MV1-000

STUD, 8X189

Contact us
#14 90012-MV1-000

BOLT 10X177

Contact us
#15 90013-MV1-000

STUD 10X200

Contact us
#16 90441-ME9-000

WASHER SEALING, 8MM

Price €5.99
#17 90443-KR0-000

WASHER OF SWITCH OF NEUTRAL

Price €5.02
#18 91201-MV1-003

GASKET SEALING D'OIL, 28X45X7

Price €10.26
#19 91204-425-003 i

GASKET SEALING D'OIL, 12.5X25X8 (ARAI)

Price €7.99
#20 91305-MG7-003 i

O-RING, 5X1.7 (ARAI)

Price €5.82
#21 92800-14000

BOLT OF DRAIN, 14MM

Price €3.00
#22 94109-14000

WASHER OF PLUG OF DRAIN, 14MM

Price €1.78
#23 94301-14200 i

STUD, 14X20

Price €2.08
#24 95701-0806500 i

FLANGE BOLT, 8X65

Price €2.05
#25 95701-0808000 i

FLANGE BOLT, 8X80

Price €1.81
#26 96001-0601400 i

FLANGE BOLT, 6X14

Price €1.34
#27 96001-0604000 i

FLANGE BOLT, 6X40

Price €1.74
#28 96001-0605000 i

FLANGE BOLT, 6X50

Price €1.74
#29 96001-0608000 i

FLANGE BOLT, 6X80

Price €1.81
