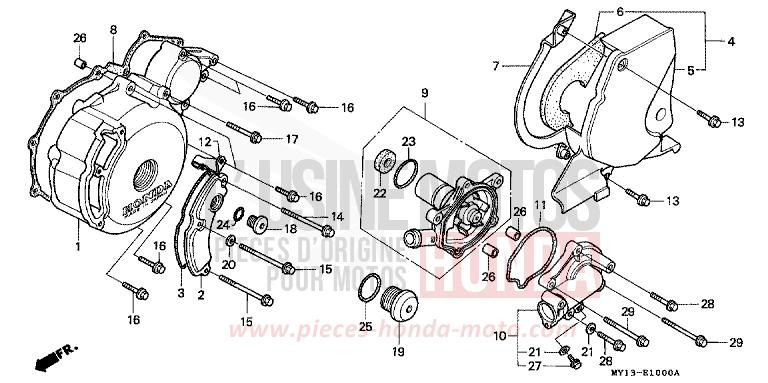

LEFT CRANKCASE COVER/ WATER PUMP for Africa Twin 750 SHASTA WHITE (NH138H) from 1993

LEFT CRANKCASE COVER/ WATER PUMP for Africa Twin 750 SHASTA WHITE (NH138H) from 1993
Reference
Product name
#1 11341-MY1-000

COVER OF CASE ENGINE L.

Contact us
#2 11342-MY1-000

COVER OF GENERATOR PULSE

Price €76.38
Contact us
#3 11343-MV1-000

GASKET OF COVER OF PULSE GENERATOR

Price €15.12
#4 11350-MY1-000

COVER COMP. REAR L.

Price €122.42
Contact us
#6 11352-MV1-700

RUBBER OF COVER REAR L.

Price €35.53
#7 11355-MV1-000

PLATE, GUIDE OF CHAINE D'ENTRAINEMENT

Price €33.26
Contact us
#8 11395-MV1-850

GASKET OF COVER L.

Price €24.36
#9 19200-MV1-010 i

PUMP A WATER COMP.

Price €446.32
Contact us
#10 19220-MY1-000

COVER COMP. OF PUMP A WATER

Price €90.80
Contact us
#11 19226-MM9-000

JOIND OF COVER OF PUMP A WATER

Price €7.52
#12 32972-MM9-000

WIRE CLIP SWITCH OF PRESSURE D'OIL

Contact us
#13 90002-GHB-670 i

FLANGE BOLT, 6X25

Price €5.21
#14 90002-GHB-810

FLANGE BOLT, 6X90

Contact us
#15 90002-GHB-820

BOLT 6X95

Contact us
#16 90003-MS8-000 i

FLANGE BOLT, 6X35

Price €5.83
Contact us
#17 90004-MS8-000 i

FLANGE BOLT, 6X45

Contact us
#18 90084-MN8-010 i

CAP, 14MM

Price €18.26
#19 90087-KT7-000

CAP,

Price €28.39
#20 90441-706-000

WASHER SEALING, 6MM

Price €1.02
#21 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
#22 91201-MF2-003 i

GASKET SEALING D'OIL, 12X28X7 (ARAI)

Price €8.56
#23 91302-MB0-013 i

O-RING, 32.95X2.62 (ARAI)

Price €6.30
#24 91303-377-000 i

O-RING, 13.8X2.5

Price €9.58
#25 91356-425-003 i

O-RING, 30MM

Price €7.57
#26 94301-08140 i

STUD, 8X14

Price €2.05
#27 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#28 95701-0602507 i

FLANGE BOLT, 6X25

Price €1.34
#29 95701-0604507 i

FLANGE BOLT, 6X45

Price €1.66
