CRANKSHAFT/PISTON 🏍️ Africa Twin 750
GEARSHIFT DRUM 🏍️ Africa Twin 750

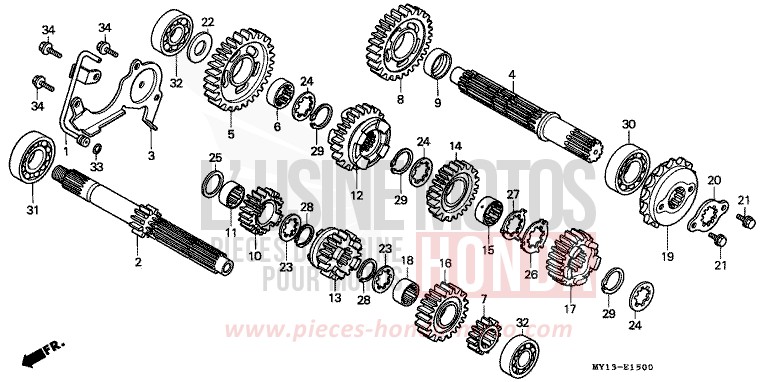

TRANSMISSION for Africa Twin 750 ROSS WHITE (NH196) from 1999

TRANSMISSION for Africa Twin 750 ROSS WHITE (NH196) from 1999
Reference
Product name
#1 15520-MS6-000

PIPE COMP. FEED OIL

Price €40.14
#2 23210-MV1-000

SHAFT MAIN COMP. (12T)

Price €300.38
Contact us
#3 23212-MS6-920 i

BEARING FIXING PLATE

Price €27.70
#4 23220-MAY-000 i

COUNTERSHAFT

Price €282.83
Contact us
#5 23421-MV1-000

PINION PREMIERE SHAFT OF RENVOI (37T)

Price €227.56
#6 23422-MV1-000

BAND CANNELEE, 28X10

Price €28.37
#7 23431-MV1-000

PINION DEUXIEME SHAFT MAIN (16T)

Price €70.15
Contact us
#8 23441-MV1-000

PINION DEUXIEME SHAFT OF RENVOI (33T)

Price €186.41
Contact us
#9 23442-MR5-670

RING, 28X31X10

Price €30.01
#10 23451-MY1-000 i

PINION TR0ISIEME SHAFT MAIN (20T)

Price €177.65
#11 23455-MS9-750

RING, 25X28X13.5

Price €29.77
#12 23461-MY1-000 i

PINION TROISIEME SHAFT OF RENVOI (31T)

Price €187.03
Contact us
#13 23471-MV1-000

PINION QUATRIEME SHAFT MAIN (22T)

Contact us
#14 23481-MV1-000

PINION QUATRIEME SHAFT OF RENVOI (28T)

Price €172.69
Contact us
#15 23482-MR7-000

BAND CANNELEE, 28X13.5

Price €36.80
#16 23491-MV1-000

PINION CINQUIEME SHAFT MAIN (24T)

Price €148.54
Contact us
#17 23501-MV1-000

PINION CINQUIEME SHAFT OF RENVOI (26T)

Price €256.85
#18 23512-MR7-000

NUTHUELSE,

Price €36.37
#19 23801-MV1-000

PINION OF CONTROL (16T)

Price €89.03
#20 23811-MV1-000

PLATE OF FIXING

Price €18.13
#21 90118-958-003

FLANGE BOLT, 6X12

Price €7.31
#22 90404-KK0-000

WASHER, 20X37X2

Price €7.20
#23 90451-KY2-000

WASHER CANNELEE, 25X31X1.5

Price €7.48
#24 90452-MR7-000

NUTSCHEIBE, 28X34X15

Price €7.61
#25 90456-MA6-000

WASHER OF STOPPER, 25MM

Price €7.61
#26 90463-MR7-000

NUTSCHEIBE, 28MM

Price €14.40
#27 90464-MR7-000

SICHERUNGSSCHEIBE, 28MM

Price €14.40
#28 90601-107-000

CIRCLIP, 25MM

Price €7.91
#29 90603-MN4-000 i

SPRENGRING, 28MM

Price €7.63
#30 91001-MN5-003 i

BALL BEARING, 28X54X20.6 (NTN)

Price €64.92
#31 91001-MV1-003 i

RADIAL BALL BEARING, 62/25

Price €45.90
#32 91003-MG2-792 i

RADIAL BALL BEARING, 6204U (KOYO)

Price €23.05
#33 91318-ME5-003 i

O-RING, 5.6X1.9 (ARAI)

Price €6.65
#34 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
