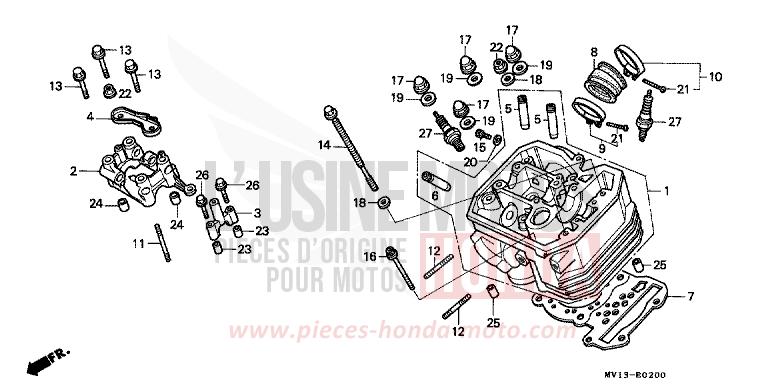

FRONT CYLINDER HEAD for Africa Twin 750 BLACK (NH1A) from 1992

FRONT CYLINDER HEAD for Africa Twin 750 BLACK (NH1A) from 1992
Reference
Product name
#23 94301-08140 i

STUD, 8X14

Price €2.05
#25 94301-14200 i

STUD, 14X20

Price €2.08
#26 96001-0604000 i

FLANGE BOLT, 6X40

Price €1.74
#1 12210-MV1-000

CYLINDER HEAD COMP. FRONT

Contact us
#2 12223-MV1-000

SUPPORT D'CAMSHAFT

Price €239.64
#3 12225-MF5-000

PORTE-CAMSHAFT SIDE

Price €66.48
#4 12226-MF5-000

PLATE OF GUIDE OIL OF VALVE

Price €31.36
#5 12231-MF5-305

GUIDE OF INTAKE VALVE (O.S.)

Price €43.84
#6 12241-MF5-315 i

GUIDE OF VALVE EXHAUST (OS)

Price €40.30
#7 12251-MV1-004

GASKET OF CYLINDER HEAD

Price €62.48
#8 16211-MN8-750

INSULATOR OF CARBURETOR

Price €32.80
#9 16218-MN8-750

STRIPE A, ISOLATEUR

Price €17.68
#10 16219-MN8-750

STRIPE B, ISOLATEUR

Price €20.42
#11 90013-MF5-000

STUD, 8X50

Price €6.46
#12 90015-MN8-000

STUD, 8X22

Price €6.08
#13 90066-MC7-000 i

FLANGE BOLT, 8X68

Price €10.25
#14 90081-MM9-003 i

BOLT OF CYLINDER, 8X187

Price €15.95
#15 90089-MN8-000

BOLT OF SOCKET, 5X8

Price €5.83
Contact us
#16 90094-MK4-600

BOLT OF SOCKET OF FLANGE, 6X70

Contact us
#17 90202-329-000 i

NUT OF CAP OF FLANGE, 10MM

Price €8.76
#18 90401-MR1-000 i

WASHER, 8MM

Price €6.13
#19 90410-HC4-000 i

WASHER, 10MM

Price €7.20
#20 90452-323-000

WASHER SEALING, 5MM

Price €5.99
#21 93500-050250G i

CYLINDRICAL HEAD SCREW, 5X25

Price €0.85
#22 94050-08080 i

FLANGE NUT, 8MM

Price €1.50
#24 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#27 98069-57916 i

SPARK PLUG IGNITION (DPR7EA-9) (NGK)

Price €6.67
#27 98069-57926 i

SPARK PLUG IGNITION (X22EPR-U9)

Price €6.67
#27 98069-58916 i

SPARK PLUG IGNITION (DPR8EA-9) (NGK)

Price €6.67
#27 98069-58926

SPARK PLUG IGNITION (X24EPR-U9) (DENSO)

Price €6.67
#27 98069-59916 i

SPARK PLUG IGNITION (DPR9EA-9) (NGK)

Price €6.67
#27 98069-59926 i

SPARK PLUG IGNITION (X27EPR-U9) (DENSO)

Price €6.67
