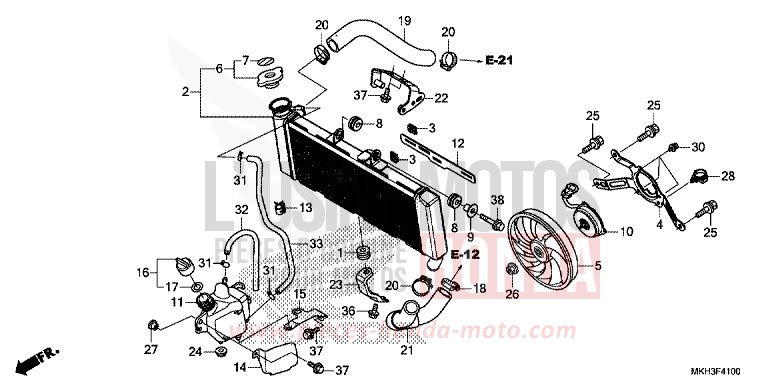

RADIATOR for ADV750 MAT BULLET SILVER (NH389) from 2017

RADIATOR for ADV750 MAT BULLET SILVER (NH389) from 2017
Reference
Product name
#1 17622-GB7-900

RUBBER, CUSHION

Price €8.39
#2 19010-MKH-D01

RADIATOR COMP

Price €570.55
#3 19014-KEA-003

NUT, SETTING (6MM)

Price €7.20
#4 19016-MKH-D01

SHROUD, RADIATOR

Price €169.04
#5 19020-KVZ-631

FAN COMP, COOLING

Price €94.07
#6 19037-KZZ-G41

CAP COMP, RADIATOR (TRAD)

Price €40.24
#7 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €14.70
#8 19051-MGS-D30

RUBBER, RADIATOR MOUNTING

Price €7.43
#9 19052-MGH-640 i

COLLAR, RADIATOR MOUNTING

Price €7.48
#10 19080-MKH-D01

MOTOR ASSY, FAN

Price €409.03
#11 19101-MGS-D70

TANK, RADIATOR RESERVE

Price €101.60
#12 19516-MKH-D00

RUBBER, RADIATOR LOWER

Price €15.61
#13 90690-GHB-641 i

CLIP, CABLE, 10MM

Price €2.08
#14 19103-MGS-D70

GUARD, RESERVE TANK

Price €34.79
#15 19104-MGS-D70

STAY, RESERVE TANK LOWER

Price €20.86
#16 19106-GET-000

CAP ASSY, RESERVE TANK

Price €21.38
#17 19107-GET-000

PACKING, RESERVE TANK

Price €6.91
#18 19504-MGP-000

CLAMP, WATER HOSE, 35MM

Price €24.43
#19 19505-MKH-D00

HOSE, RADIATOR UPPER

Price €25.96
#20 19505-ML3-770

CLAMPER, WATER HOSE

Price €18.26
#21 19506-MKH-D00

HOSE, RADIATOR LOWER

Price €36.56
#22 19515-MKH-D00 i

STAY, RADIATOR UPPER

Price €58.13
#23 19516-MJH-Y00ZB

STAY, RADIATOR LOWER NH1 (NH1 BLACK)

Price €25.06
#24 64315-GB4-000

GROMMET, TOP COVER

Price €9.48
#25 90120-GHB-601

BOLT-WASHER, 6X12

Price €7.55
#26 90315-MFL-003

NUT, FLANGE, 3MM

Price €6.38
#27 90522-028-000 i

WASHER, CHAIN CASE SETTING

Price €5.71
#28 90652-HC4-003 i

CLAMP, HARNESS

Price €8.45
#30 93891-0400607

SCREW-WASHER, 4X6

Price €0.79
#31 95002-02100 i

CLIP, TUBE (B10)

Price €1.08
#32 95005-5525020

TUBE, 53X250 (95005-55001-20M)

Price €7.40
#33 95005-5560020

TUBE, 53X600 (95005-55001-20M)

Price €14.88
Contact us
#36 95701-0601402 i

BOLT, FLANGE, 6X14

Price €1.46
#37 95701-0601408 i

BOLT, FLANGE, 6X14

Price €1.15
#38 95701-0602807 i

BOLT, FLANGE, 6X28

Price €1.25
